Relevant Products: Exclaimer Cloud - Signatures for Office 365
Scenario
You are populating an attribute within Microsoft 365, such as a Custom Attribute, with a web-hosted image. However, the image itself does not appear within the Template Editor or when an email has been sent.
The below screenshot displays the custom attribute for a web-hosted image:
The below screenshot displays the image placeholder within the Template Editor (or in the sent email):
Reason
The image may not show up for many reasons, some of the most common reasons are:
-
The hosted URL for the image isn't public-facing, so it will not show up at all.
-
The attribute used hasn't been updated or synchronised through to Exclaimer Cloud.
Resolution
To resolve this issue:
Hosted image URL isn't public-facing
To check that the hosted image URL is public-facing or not:
- Test the link outside the attribute by copying the link into an incognito window, or into the image/logo window in the editor.
- If the image appears, then the link is public-facing.

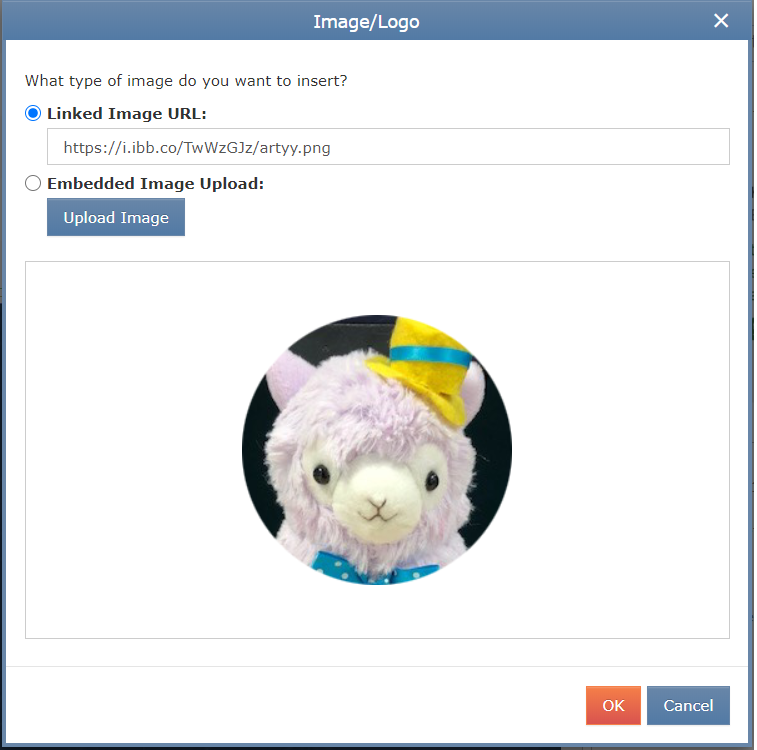

The below screenshot displays the image within the Image/Logo window:
Manual Data synchronisation
Use manual data synchronisation to allow the data to come through to Exclaimer Cloud - this is a faster method.
If you are using custom attributes, they may need to be synchronised with Exclaimer Cloud.
Signature has been rendered as bitmap image
Is the signature rendered as Bitmap or Normal:
- Check if you are using a custom font that has been uploaded or if there is a background image that is causing the signature to render as a Bitmap.

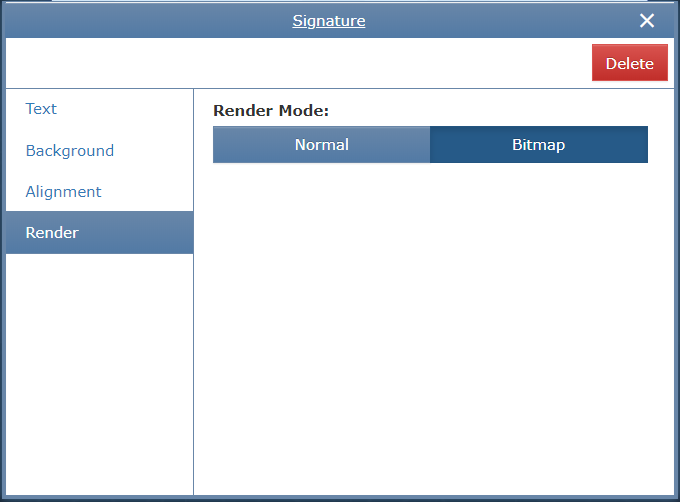

- If you are not using any custom fonts or background images, check whether the signature canvas and/or the golden yellow line of the table for Render Mode has been set to Normal or Bitmap.
- If Render Mode has been set to Bitmap, due to the use of custom fonts or background images, the hosted image within the attribute will not work.
- By default, Render Mode is set to Bitmap to allow recipients to see the custom font and background image at all times, within every email.
- You can use options such as: Using custom fonts without rendering as bitmaps or you can use background colours instead.
- If you remove custom fonts and background images then automatically the signature Render Mode will be set to Normal.
- If the Bitmap option has been selected by mistake, you can set the signature Render Mode to Normal without any issues and the image will appear within the signature template.

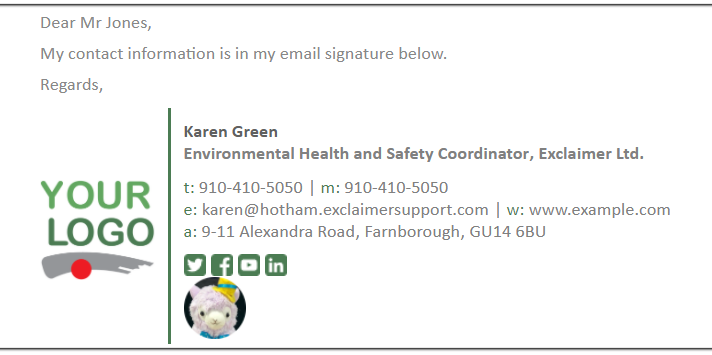

The below screenshot displays the image within the Template Editor (or in the sent email):
